Description:

This class represents a doxygen XLink target. The targets are read from doxygen tag-files, are inserted into the string tree implemented with class Index and indexed by a hashtable within the same class.

Definition at line 22 of file target.hpp.

#include <target.hpp>

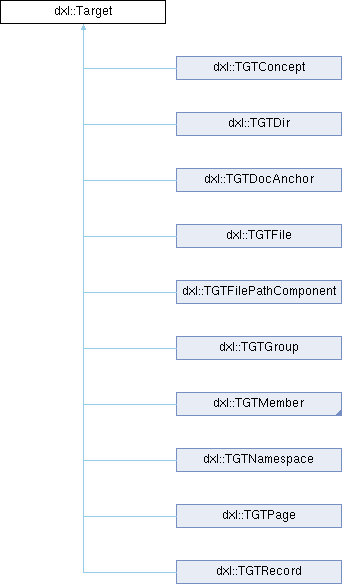

Inheritance diagram for dxl::Target:

Inner Type Index:
struct	FunctionArguments
class	KindStats
struct	TemplateArguments

Public Type Index:
enum	Kinds : unsigned { Dir = (1 << 0) , File = (1 << 1) , Page = (1 << 2) , Group = (1 << 3) , DocAnchor = (1 << 4) , Namespace = (1 << 5) , Struct = (1 << 6) , Class = (1 << 7) , Union = (1 << 8) , Concept = (1 << 9) , Macro = (1 <<10) , Typedef = (1 <<11) , Variable = (1 <<12) , Function = (1 <<13) , Enumeration = (1 <<14) , EnumElement = (1 <<15) , GenericMember = (1 <<16) , FILEPATH_COMPONENT = (1 <<17) , UNKNOWN_COMPOUND = (1 <<18) , UNSPECIFIED = (1 <<19) , MAX_KIND = 19 , ROOT = (1 <<20) , UNRESOLVED = (1 <<21) , MEMBER = Macro + Typedef + Variable + Function + Enumeration + EnumElement , RECORD = Struct + Class + Union , COMPOUND = RECORD + Namespace }
	Enumerates the kinds of compounds found in a the Doxygen tagfile. More...

Public Static Field Index:
static size_t	MAX_TEMPLATE_ARGS = 64

Public Static Method Index:
static Target *	GetRootNodeTarget ()

Public Field Index:
alib::String	HTMLFile
	The HTML file that this target links to (or into).
int	LineNo
	The line number in the Doxygen tag-file where this entity is defined.

Public Method Index:
bool	IsA (Kinds aKind) const
Kinds	Kind () const

Protected Field Index:
Kinds	kind
	The kind of this target.

Protected Method Index:
	Target (Kinds pKind, const alib::String &htmlFile, int lineNo)

Enumeration Details:

◆ Kinds

enum dxl::Target::Kinds : unsigned

Enumerates the kinds of compounds found in a the Doxygen tagfile.

Enumerator
Dir	Denotes a source folder.
File	Denotes a source file.
Page	Denotes a page.
Group	Denotes a group.
DocAnchor	Denotes a preprocessor definition.
Namespace	Denotes a namespace.
Struct	Denotes a struct.
Class	Denotes a class.
Union	Denotes a union.
Concept	Denotes a C++20 concept.
Macro	Denotes a preprocessor definition.
Typedef	Denotes a type definition.
Variable	Denotes a namespace- or member-variable.
Function	Denotes a namespace- or member-function.
Enumeration	Denotes an enumeration.
EnumElement	Denotes an enumeration element.
GenericMember	An unknown or uninteresting group member type.
FILEPATH_COMPONENT	A node of a file path (not a doxygen kind).
UNKNOWN_COMPOUND	This is set when creating paths to compounds. They should be replaced later, with true compound types. Otherwise a compound was not doxed!
UNSPECIFIED	Used with the field XLink::KindSpec.
MAX_KIND	The highest bit defining a kind.
ROOT	The kind attached to the root node of the tree.
UNRESOLVED	The kind attached to the root node of the tree.
MEMBER	Mask to identify member types. Here the word "member" is not meant in the C++ sense, but in the sense of "compound member"
RECORD	Mask to identify records types.
COMPOUND	Mask to identify compound types.

Definition at line 28 of file target.hpp.

Field Details:

◆ HTMLFile

alib::String dxl::Target::HTMLFile

The HTML file that this target links to (or into).

Definition at line 219 of file target.hpp.

◆ kind

Kinds dxl::Target::kind

protected

The kind of this target.

Definition at line 211 of file target.hpp.

◆ LineNo

int dxl::Target::LineNo

The line number in the Doxygen tag-file where this entity is defined.

Definition at line 216 of file target.hpp.

◆ MAX_TEMPLATE_ARGS

size_t dxl::Target::MAX_TEMPLATE_ARGS = 64

static

The maximum number of template arguments to parse and compare. If exceeded, a parse error will be set for the XLink.

Definition at line 26 of file target.hpp.

Constructor(s) / Destructor Details:

◆ Target()

dxl::Target::Target	(	Kinds	pKind,
		const alib::String &	htmlFile,
		int	lineNo )

inlineprotected

Constructor.

Parameters

pKind	The kind of this target.
htmlFile	The html file that this instance targets.
lineNo	The definition line number in the Doxygen tag-file.

Definition at line 226 of file target.hpp.

Method Details:

◆ GetRootNodeTarget()

Target * dxl::Target::GetRootNodeTarget ( )

inlinestatic

Static method that returns a likewise static target which class Index attaches to its StringTree's root-node.

Returns: A pointer to the target of type ROOT.

Definition at line 247 of file target.hpp.

◆ IsA()

bool dxl::Target::IsA ( Kinds aKind ) const

inline

Tests if an instance is of a given aKind.

Parameters

aKind The kind to test this instance for.

Returns: true if this instance is of the given kind, false otherwise.

Definition at line 240 of file target.hpp.

◆ Kind()

Kinds dxl::Target::Kind ( ) const

inline

Returns the kind of this target. The result may be used to cast a pointer to the corresponding descendant

Returns: The kind of this target.

Definition at line 235 of file target.hpp.

The documentation for this class was generated from the following files:
